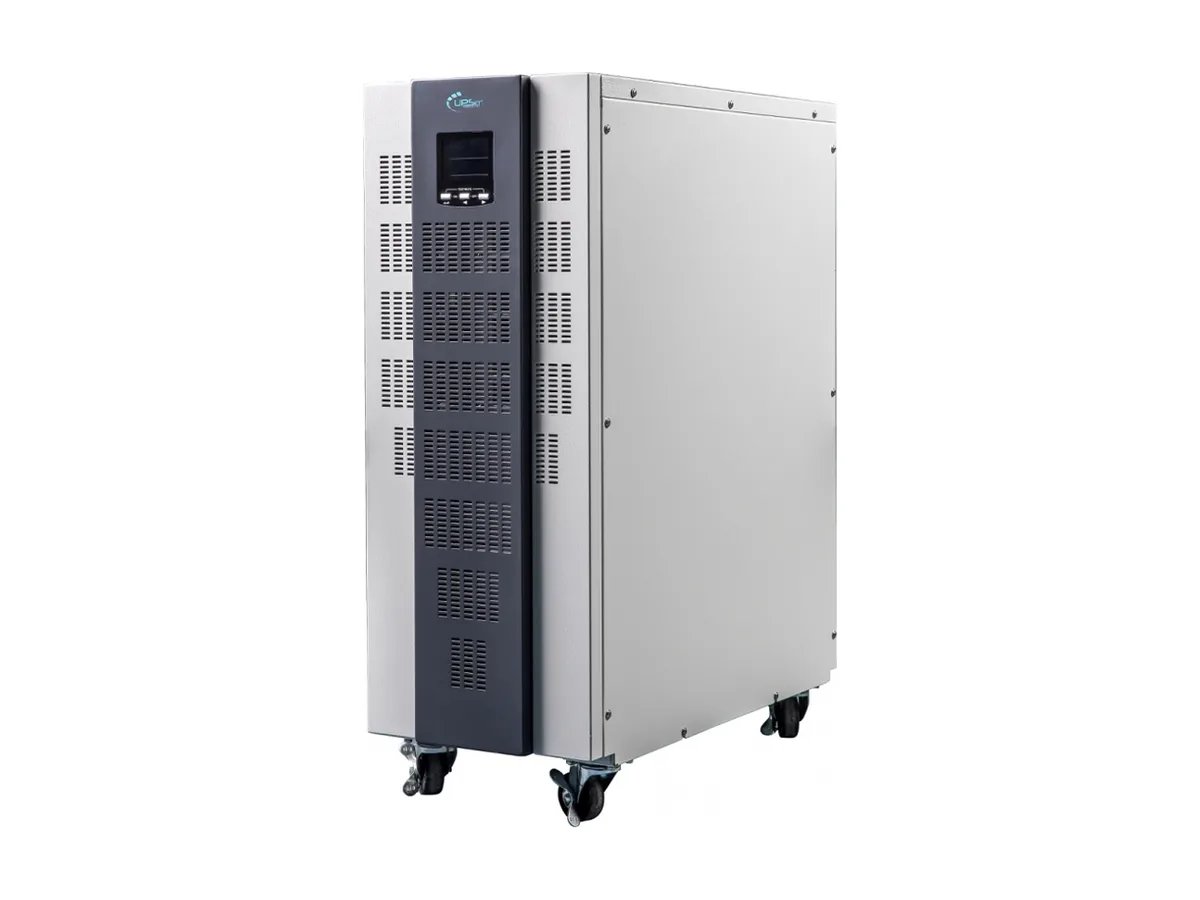

The Defender 3110, 3110L, 3115L and 3120L are 10 to 20 kVA online double conversion UPS units with 0 ms transfer from AC mode to battery mode. The standard 3110 has 16 x 9Ah built-in batteries and a 1 A charger; the long-backup L models are supplied without batteries and have a 7 A charger for external battery banks.
Features
- Real online double conversion structure
- Wide input voltage range
- Zero transfer time
- Protection against mains power problems
- Can operate as a 50/60 Hz or 60/50 Hz frequency converter
- Voltage adjustment via LCD panel (208/220/230/240 VAC)
- Low input voltage harmonics
- Low installation cost
- High reliability and performance
- Maintenance bypass
- RS232 and smart slot interface
- Turkish and English menu
80-300 VWide Voltage Range
95%High Efficiency
50/60 HzOutput Frequency
Defender Series Technical Specifications
Online Double Conversion Technology
- High Frequency and True Double-Conversion
- DSP Digital Control Technology
- Wide Input Voltage Range (110V-300V)
- Output Power Factor 0.9
- Optimized Battery Configuration: 192V/240V
- Cold Start
- 50/60 Hz Frequency Adaptive
- ECO Mode Operation For Energy Saving
- 50/60 Hz Frequency Converter Mode
- Selectable Output Voltage via LCD
- Selectable Battery Shutdown Voltage(EOD) via LCD
- Selectable Input Mode via LCD: 3/1 or 1/1
- Advanced Battery Management (ABM)
- Short Circuit and Overload Protection
- Automatically Charging Battery at UPS Off Mode
- Auto Control Fan Speed
- Standard RS232 Communication Port
- Optional Emergency Power Off (EPO)
- Optional RS485/SNMP/AS400/USB Communication Port
- Optional External Battery Bank
- Optional Manual Bypass
- Optional N+1 Redundancy Parallel
| Model | Defender 3110 | Defender 3110L | Defender 3115L | Defender 3120L |
|---|---|---|---|---|
| CAPACITY | ||||
| CAPACITY | 10KVA/9KW | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW |
| INPUT | ||||
| Rated Voltage | 3/1: 360V/380V/400V/415VAC; 1/1: 208V/220V/230V/240VAC Setting available via LCD | |||
| Voltage Range | 3/1: Half load (190-520)±5VAC, Full load (277-520)±5VAC; 1/1: Half load (110-300)±5VAC, Full load (160-300)±5VAC. | |||
| Frequency | 40-70Hz±0.5% (Auto sensing) | |||
| Power Factor | 3/1:≥0.95; 1/1:≥0.99 | |||
| BYPASS | ||||
| Voltage Range | 160V-Rated output voltage+32V | |||
| Frequency | 50/60Hz±5Hz | |||
| OUTPUT | ||||
| Voltage | 208V/220V/230V/240VAC Setting available via LCD | |||
| Voltage Regulation | ±1% | |||
| Frequency | Synchronized with utility on AC mode;50/60±0.1Hz on battery mode | |||
| Waveform | Pure sinewave | |||
| Crest Factor | 3:1 | |||
| Harmonic Distortion | ≤2%(Linear load);≤5%(Non-linear load) | |||
| Transfer Time | AC mode to battery mode :0ms; Inverter mode to bypass mode:0ms | |||
| Overload Capability | 105%-125%:Transfer to bypass after 3mins; 125%-150%: Transfer to bypass after 30s; >150%: Transfer to bypass after 100ms | |||
| EFFICIENCY | ||||
| AC Mode | ≥93% | |||
| Battery Mode | ≥92% | |||
| ECO Mode | ≥98% | |||
| BATTERY | ||||
| DC Voltage | 192V/240VDC(Set up by jumper) | |||
| Inbuilt Battery of Std Model | 16*9Ah | Without Batteries | Without Batteries | Without Batteries |
| Charge Current Standard Model | 1Amp | Without Batteries | Without Batteries | Without Batteries |
| Charge Current Long Model | No | 7 Amp | 7 Amp | 7 Amp |
| Typical Recharge Time | 8 hours recover to 90% capacity | |||
| ALARM | ||||
| Utility Failure | Beep/4s | |||
| Battery Low | Beep/1s | |||
| Overload | Beep Twice/1s | |||
| UPS Fault | Long Beep | |||
| ENVIRONMENT | ||||
| Humidity | 20~90% RH @ 0~40 (non-condensing) | |||
| Noise Level | ≤58dB (1m) | ≤58dB (1m) | ≤58dB (1m) | ≤60dB (1m) |
| MANAGEMENT | ||||
| Standard RS-232 ,Optional USB | Supports Windows 98/2000/2003/XP/Vista/2008/7/8 | |||
| Optional SNMP | Power management from SNMP manager and web browser | |||
| PHYSICAL | ||||
| Dimension(mm) W*D*H | 262×580×732 | 262×580×732 | 262×580×628 | 262×580×628 |
| Packing Dimension(mm) W*D*H | 359×687×822 | 359×687×822 | 359×687×717 | 359×687×717 |
| Net Weight(kg) | 74 | 30 | 39 | 40 |
| Gross Weight(kg) | 84 | 36 | 47 | 48 |
Specifications from the official UPSet product catalogue. Specifications are subject to change without prior notice.
