The Defender Series is a high frequency, true double conversion online UPS from 10 kVA to 20 kVA with DSP digital control and full IGBT design. It takes a 380/400/415 VAC three phase input and delivers a 230 VAC single phase pure sine wave output with output power factor 1. The battery configuration is optimised for 192-240 VDC, with optional EPO, RS485/SNMP/AS400/USB communication, manual bypass and N+1 redundant parallel operation.
10-20 kVAPower Range
1Output Power Factor
≥ 96%AC Mode Efficiency
Models

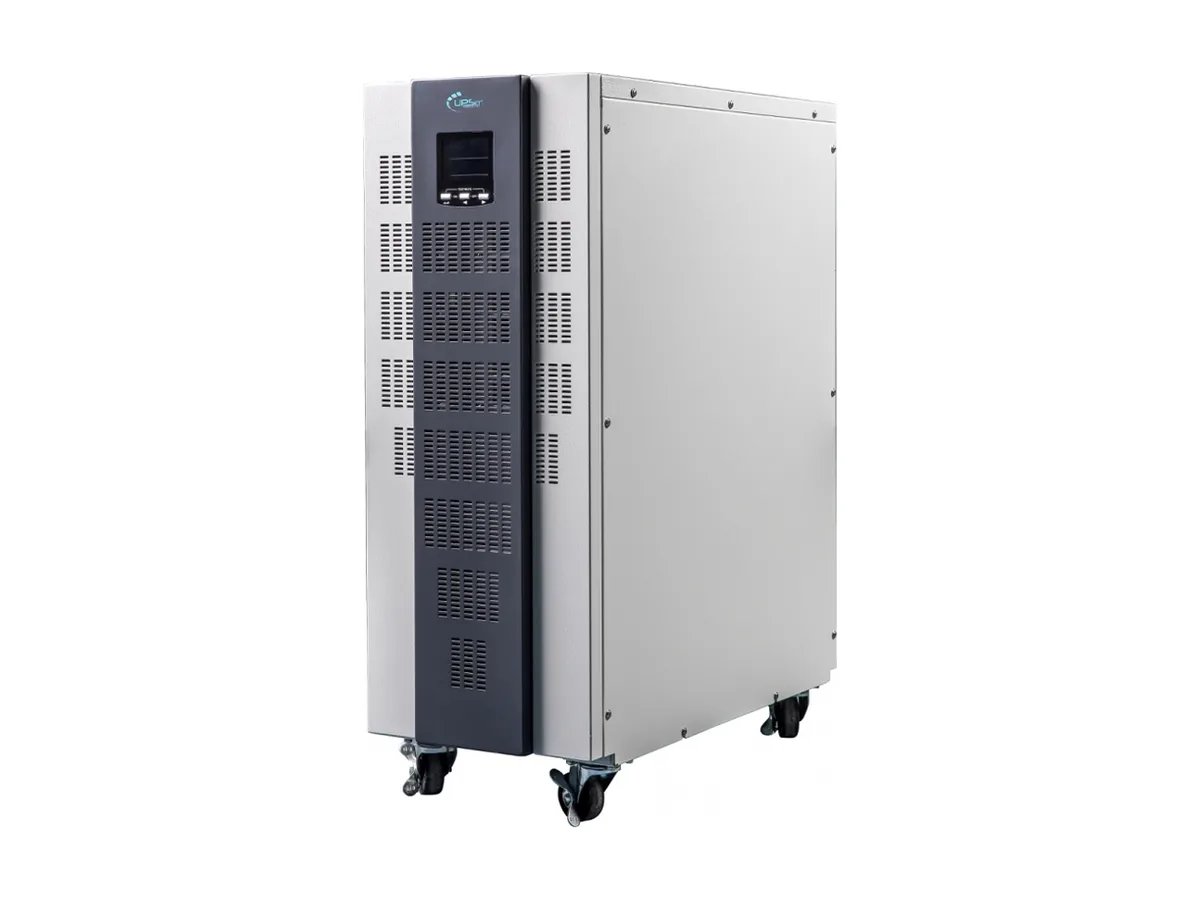

Defender 3110 10 kVA UPS
10 kVA online UPS with built-in batteries, 3 phase input and 230 V single phase output.
Defender 3110L-3120 10-20 kVA UPS
10-20 kVA long-backup online UPS for external batteries, 3 phase in, 230 V out, PF 1.
